型号： MRF136复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：211-07，2 型
外壳：211-07
描述： FET RF 65V 400MHZ 211-07
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 21 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：400MHz
增益(dB)：16dB
测试电压(V)：28V
额定电流(A)：2.5A
输出功率(W)：15W
额定电压(V)：65V
丝印：(请登录)
料号：104021
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF136' ) LIMIT 1
array(68) { ["id"]=> string(2) "27" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF137.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF136.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF136.JPG" ["ljbh"]=> string(12) "1465-1148-ND" ["zzsbh"]=> string(6) "MRF137" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "156" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(24) "FET RF 65V 400MHZ 211-07" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(15) "150MHz ~ 400MHz" ["zy"]=> string(12) "7.7dB ~ 16dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "5A" ["zsxs"]=> string(5) "1.5dB" ["dl_cs"]=> string(4) "25mA" ["gl_sc"]=> string(3) "30W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(6) "211-07" ["gysqjfz"]=> string(14) "211-07，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF137复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：211-07，2 型
外壳：211-07
描述： FET RF 65V 400MHZ 211-07
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 27 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：150MHz ~ 400MHz
增益(dB)：7.7dB ~ 16dB
测试电压(V)：28V
额定电流(A)：5A
输出功率(W)：30W
额定电压(V)：65V
丝印：(请登录)
料号：104027
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF137' ) LIMIT 1
array(68) { ["id"]=> string(2) "29" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF166C.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF166C.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF166C.JPG" ["ljbh"]=> string(12) "1465-1161-ND" ["zzsbh"]=> string(7) "MRF166C" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "171" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(24) "FET RF 65V 500MHZ 319-07" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(14) "30MHz ~ 500MHz" ["zy"]=> string(4) "16dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "4A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(4) "25mA" ["gl_sc"]=> string(3) "20W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(6) "319-07" ["gysqjfz"]=> string(14) "319-07，3 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "6" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF166C复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：319-07，3 型
外壳：319-07
描述： FET RF 65V 500MHZ 319-07
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 29 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：30MHz ~ 500MHz
增益(dB)：16dB
测试电压(V)：28V
额定电流(A)：4A
输出功率(W)：20W
额定电压(V)：65V
丝印：(请登录)
料号：104029
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF166C' ) LIMIT 1
array(68) { ["id"]=> string(2) "30" ["pdf_add"]=> string(50) "http://cdn.macom.com/datasheets/NDS-010%20Rev%204%" ["images_sw"]=> string(1) " " ["images_mk"]=> string(70) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/NPT1004D.jpg" ["images"]=> string(88) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/NPT1004D.jpg" ["ljbh"]=> string(12) "1465-1413-ND" ["zzsbh"]=> string(8) "NPT1004D" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "119" ["cfkc"]=> string(2) "25" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(31) "HEMT N-CH 28V 45W DC-4GHZ 8SOIC" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(10) "0Hz ~ 4GHz" ["zy"]=> string(4) "13dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(4) "9.5A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "350mA" ["gl_sc"]=> string(5) "37dBm" ["dy_ed"]=> string(4) "100V" ["fz_wk"]=> string(33) "8-SOIC(宽3.9mm p1.27mm)裸焊盘" ["gysqjfz"]=> string(6) "8-SOP2" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "8" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT1004D复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：8-SOP2
外壳：8-SOIC(宽3.9mm p1.27mm)裸焊盘
描述： HEMT N-CH 28V 45W DC-4GHZ 8SOIC
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 30 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：0Hz ~ 4GHz
增益(dB)：13dB
测试电压(V)：28V
额定电流(A)：9.5A
输出功率(W)：37dBm
额定电压(V)：100V
丝印：(请登录)
料号：104030
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT1004D' ) LIMIT 1
array(68) { ["id"]=> string(2) "31" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF148A.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF136.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF136.JPG" ["ljbh"]=> string(12) "1465-1151-ND" ["zzsbh"]=> string(7) "MRF148A" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "320" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(25) "FET RF 120V 175MHZ 211-07" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(14) "30MHz ~ 175MHz" ["zy"]=> string(11) "15dB ~ 18dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(2) "6A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "100mA" ["gl_sc"]=> string(3) "30W" ["dy_ed"]=> string(4) "120V" ["fz_wk"]=> string(6) "211-07" ["gysqjfz"]=> string(14) "211-07，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF148A复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：211-07，2 型
外壳：211-07
描述： FET RF 120V 175MHZ 211-07
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 31 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：30MHz ~ 175MHz
增益(dB)：15dB ~ 18dB
测试电压(V)：50V
额定电流(A)：6A
输出功率(W)：30W
额定电压(V)：120V
丝印：(请登录)
料号：104031
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF148A' ) LIMIT 1
array(68) { ["id"]=> string(2) "41" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF151G.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF151G.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF151G.JPG" ["ljbh"]=> string(12) "1465-1155-ND" ["zzsbh"]=> string(7) "MRF151G" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "435" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(29) "FET RF 2CH 125V 175MHZ 375-04" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(25) "2 N 沟道（双）共源" ["pl"]=> string(6) "175MHz" ["zy"]=> string(4) "16dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(3) "40A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "500mA" ["gl_sc"]=> string(4) "300W" ["dy_ed"]=> string(4) "125V" ["fz_wk"]=> string(6) "375-04" ["gysqjfz"]=> string(14) "375-04，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF151G复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：375-04，2 型
外壳：375-04
描述： FET RF 2CH 125V 175MHZ 375-04
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 41 ) LIMIT 1
晶体管类型：2 N 沟道（双）共源
频率(Hz)：175MHz
增益(dB)：16dB
测试电压(V)：50V
额定电流(A)：40A
输出功率(W)：300W
额定电压(V)：125V
丝印：(请登录)
料号：104041
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF151G' ) LIMIT 1
array(68) { ["id"]=> string(2) "68" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF157.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF157.jpg" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF157.jpg" ["ljbh"]=> string(12) "1465-1157-ND" ["zzsbh"]=> string(6) "MRF157" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "30" ["cfkc"]=> string(3) "164" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(30) "FET RF 125V 80MHZ 368-03 1=1PC" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(5) "80MHz" ["zy"]=> string(4) "21dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(3) "60A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "800mA" ["gl_sc"]=> string(4) "600W" ["dy_ed"]=> string(4) "125V" ["fz_wk"]=> string(6) "368-03" ["gysqjfz"]=> string(14) "368-03，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "2" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF157复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：368-03，2 型
外壳：368-03
描述： FET RF 125V 80MHZ 368-03 1=1PC
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 68 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：80MHz
增益(dB)：21dB
测试电压(V)：50V
额定电流(A)：60A
输出功率(W)：600W
额定电压(V)：125V
丝印：(请登录)
料号：104068
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF157' ) LIMIT 1
array(68) { ["id"]=> string(3) "109" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF151.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF151.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF151.JPG" ["ljbh"]=> string(12) "1465-1153-ND" ["zzsbh"]=> string(6) "MRF151" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "491" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(27) "FET RF N-CH 150W 50V 175MHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(6) "175MHz" ["zy"]=> string(11) "13dB ~ 22dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(3) "16A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "250mA" ["gl_sc"]=> string(4) "150W" ["dy_ed"]=> string(4) "125V" ["fz_wk"]=> string(1) "-" ["gysqjfz"]=> string(1) "-" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "-" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF151复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：-
外壳：-
描述： FET RF N-CH 150W 50V 175MHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 109 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：175MHz
增益(dB)：13dB ~ 22dB
测试电压(V)：50V
额定电流(A)：16A
输出功率(W)：150W
额定电压(V)：125V
丝印：(请登录)
料号：1040109
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF151' ) LIMIT 1
array(68) { ["id"]=> string(3) "111" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF136Y.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF136Y.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF136Y.JPG" ["ljbh"]=> string(12) "1465-1147-ND" ["zzsbh"]=> string(7) "MRF136Y" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "127" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(25) "FET RF 65V 400MHZ 319B-02" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(6) "400MHz" ["zy"]=> string(4) "14dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "5A" ["zsxs"]=> string(3) "1dB" ["dl_cs"]=> string(4) "25mA" ["gl_sc"]=> string(3) "30W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(7) "319B-02" ["gysqjfz"]=> string(15) "319B-02，1 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF136Y复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：319B-02，1 型
外壳：319B-02
描述： FET RF 65V 400MHZ 319B-02
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 111 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：400MHz
增益(dB)：14dB
测试电压(V)：28V
额定电流(A)：5A
输出功率(W)：30W
额定电压(V)：65V
丝印：(请登录)
料号：1040111
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF136Y' ) LIMIT 1
array(68) { ["id"]=> string(3) "119" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF166W.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF166W.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF166W.JPG" ["ljbh"]=> string(12) "1465-1162-ND" ["zzsbh"]=> string(7) "MRF166W" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "241" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(28) "FET RF 2CH 65V 500MHZ 412-01" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(25) "2 N 沟道（双）共源" ["pl"]=> string(14) "30MHz ~ 500MHz" ["zy"]=> string(4) "16dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "8A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "100mA" ["gl_sc"]=> string(3) "40W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(6) "412-01" ["gysqjfz"]=> string(14) "412-01，1 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }

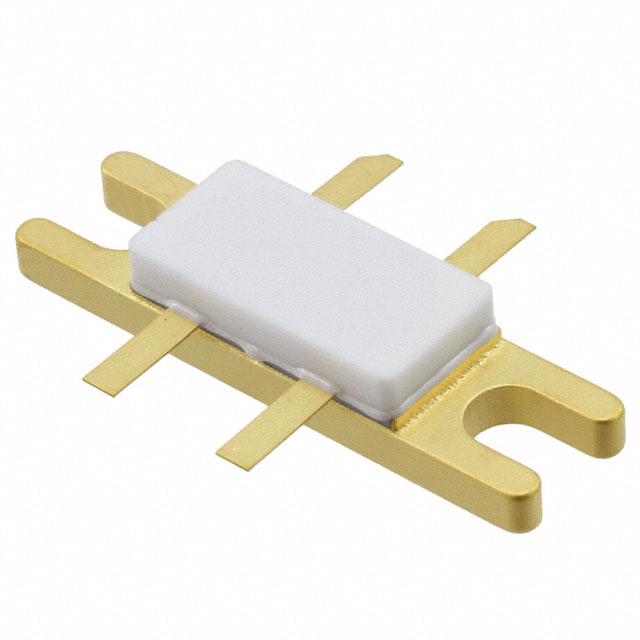

型号： MRF166W复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：412-01，1 型
外壳：412-01
描述： FET RF 2CH 65V 500MHZ 412-01
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 119 ) LIMIT 1
晶体管类型：2 N 沟道（双）共源
频率(Hz)：30MHz ~ 500MHz
增益(dB)：16dB
测试电压(V)：28V
额定电流(A)：8A
输出功率(W)：40W
额定电压(V)：65V
丝印：(请登录)
料号：1040119
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF166W' ) LIMIT 1
array(68) { ["id"]=> string(3) "148" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF158.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF158.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF158.JPG" ["ljbh"]=> string(12) "1465-1158-ND" ["zzsbh"]=> string(6) "MRF158" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "183" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(25) "FET RF 65V 500MHZ 305A-01" ["xl"]=> string(6) "TMOS®" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(6) "500MHz" ["zy"]=> string(4) "18dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(5) "500mA" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(4) "25mA" ["gl_sc"]=> string(2) "2W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(7) "305A-01" ["gysqjfz"]=> string(15) "305A-01，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF158复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：305A-01，2 型
外壳：305A-01
描述： FET RF 65V 500MHZ 305A-01
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 148 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：500MHz
增益(dB)：18dB
测试电压(V)：28V
额定电流(A)：500mA
输出功率(W)：2W
额定电压(V)：65V
丝印：(请登录)
料号：1040148
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF158' ) LIMIT 1
array(68) { ["id"]=> string(3) "150" ["pdf_add"]=> string(50) "http://cdn.macom.com/datasheets/NDS-005%20Rev%205%" ["images_sw"]=> string(1) " " ["images_mk"]=> string(83) "//media.digikey.com/Renders/MACom%20Technology%20Solutions/1465;8SOIC-3.9-EP;;8.jpg" ["images"]=> string(101) "https://www.chenkeiot.com/Public/imagesmk/Renders/MACom_Technology_Solutions/1465;8SOIC-3.9-EP;;8.jpg" ["ljbh"]=> string(12) "1465-1418-ND" ["zzsbh"]=> string(8) "NPT35015" ["zddgs"]=> string(1) "1" ["xysl"]=> string(3) "104" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(30) "HEMT N-CH 28V 18W 3300-3800MHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(15) "3.3GHz ~ 3.8GHz" ["zy"]=> string(6) "10.5dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "5A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "200mA" ["gl_sc"]=> string(4) "1.7W" ["dy_ed"]=> string(4) "100V" ["fz_wk"]=> string(33) "8-SOIC(宽3.9mm p1.27mm)裸焊盘" ["gysqjfz"]=> string(6) "8-SOIC" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(6) "管件" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "8" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT35015复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：8-SOIC
外壳：8-SOIC(宽3.9mm p1.27mm)裸焊盘
描述： HEMT N-CH 28V 18W 3300-3800MHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 150 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：3.3GHz ~ 3.8GHz
增益(dB)：10.5dB
测试电压(V)：28V
额定电流(A)：5A
输出功率(W)：1.7W
额定电压(V)：100V
丝印：(请登录)
料号：1040150
量大可议价
起订量:10 修改
包装量: 管件 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT35015' ) LIMIT 1
array(68) { ["id"]=> string(3) "152" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/MRF151A.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF151A.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF151A.JPG" ["ljbh"]=> string(12) "1465-1154-ND" ["zzsbh"]=> string(7) "MRF151A" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "64" ["cfkc"]=> string(3) "750" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(26) "FET RF N-CH 50V 150W P-244" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(14) "30MHz ~ 175MHz" ["zy"]=> string(11) "13dB ~ 22dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(3) "16A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "250mA" ["gl_sc"]=> string(4) "150W" ["dy_ed"]=> string(4) "125V" ["fz_wk"]=> string(5) "P-244" ["gysqjfz"]=> string(5) "P-244" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF151A复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：P-244
外壳：P-244
描述： FET RF N-CH 50V 150W P-244
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 152 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：30MHz ~ 175MHz
增益(dB)：13dB ~ 22dB
测试电压(V)：50V
额定电流(A)：16A
输出功率(W)：150W
额定电压(V)：125V
丝印：(请登录)
料号：1040152
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF151A' ) LIMIT 1
array(68) { ["id"]=> string(3) "153" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/NPT2021.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/NPT2021.jpg" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/NPT2021.jpg" ["ljbh"]=> string(12) "1465-1423-ND" ["zzsbh"]=> string(7) "NPT2021" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "56" ["cfkc"]=> string(3) "125" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(27) "HEMT N-CH 48V 50W DC-2.2GHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(12) "0Hz ~ 2.2GHz" ["zy"]=> string(4) "15dB" ["dy_cs"]=> string(3) "48V" ["eddl"]=> string(2) "7A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "300mA" ["gl_sc"]=> string(3) "50W" ["dy_ed"]=> string(4) "160V" ["fz_wk"]=> string(8) "TO-272BC" ["gysqjfz"]=> string(8) "TO-272-2" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "2" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT2021复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：TO-272-2
外壳：TO-272BC
描述： HEMT N-CH 48V 50W DC-2.2GHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 153 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：0Hz ~ 2.2GHz
增益(dB)：15dB
测试电压(V)：48V
额定电流(A)：7A
输出功率(W)：50W
额定电压(V)：160V
丝印：(请登录)
料号：1040153
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT2021' ) LIMIT 1
array(68) { ["id"]=> string(3) "170" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/NPT2022.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/NPT2022.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/NPT2022.JPG" ["ljbh"]=> string(12) "1465-1424-ND" ["zzsbh"]=> string(7) "NPT2022" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "28" ["cfkc"]=> string(3) "125" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(26) "HEMT N-CH 48V 100W DC-2GHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(10) "0Hz ~ 2GHz" ["zy"]=> string(4) "17dB" ["dy_cs"]=> string(3) "48V" ["eddl"]=> string(3) "14A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "600mA" ["gl_sc"]=> string(4) "100W" ["dy_ed"]=> string(4) "160V" ["fz_wk"]=> string(8) "TO-272BC" ["gysqjfz"]=> string(8) "TO-272-2" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "2" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT2022复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：TO-272-2
外壳：TO-272BC
描述： HEMT N-CH 48V 100W DC-2GHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 170 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：0Hz ~ 2GHz
增益(dB)：17dB
测试电压(V)：48V
额定电流(A)：14A
输出功率(W)：100W
额定电压(V)：160V
丝印：(请登录)
料号：1040170
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT2022' ) LIMIT 1
array(68) { ["id"]=> string(3) "393" ["pdf_add"]=> string(43) "http://cdn.macom.com/datasheets/NPT2020.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/NPT2020.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/NPT2020.JPG" ["ljbh"]=> string(12) "1465-1407-ND" ["zzsbh"]=> string(7) "NPT2020" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "28" ["cfkc"]=> string(3) "150" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(27) "HEMT N-CH 48V 50W DC-3.5GHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(12) "0Hz ~ 3.5GHz" ["zy"]=> string(4) "11dB" ["dy_cs"]=> string(3) "48V" ["eddl"]=> string(4) "8.2A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "350mA" ["gl_sc"]=> string(3) "50W" ["dy_ed"]=> string(4) "160V" ["fz_wk"]=> string(1) "-" ["gysqjfz"]=> string(1) "-" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(6) "托盘" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "-" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT2020复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：-
外壳：-
描述： HEMT N-CH 48V 50W DC-3.5GHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 393 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：0Hz ~ 3.5GHz
增益(dB)：11dB
测试电压(V)：48V
额定电流(A)：8.2A
输出功率(W)：50W
额定电压(V)：160V
丝印：(请登录)
料号：1040393
量大可议价
起订量:10 修改
包装量: 托盘 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT2020' ) LIMIT 1
array(68) { ["id"]=> string(3) "403" ["pdf_add"]=> string(44) "https://cdn.macom.com/datasheets/NPT2010.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(69) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/NPT2010.JPG" ["images"]=> string(87) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/NPT2010.JPG" ["ljbh"]=> string(12) "1465-1406-ND" ["zzsbh"]=> string(7) "NPT2010" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "50" ["cfkc"]=> string(3) "150" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(28) "HEMT N-CH 48V 100W DC-2.2GHZ" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(4) "HEMT" ["pl"]=> string(12) "0Hz ~ 2.2GHz" ["zy"]=> string(4) "15dB" ["dy_cs"]=> string(3) "48V" ["eddl"]=> string(1) "-" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "600mA" ["gl_sc"]=> string(3) "95W" ["dy_ed"]=> string(3) "48V" ["fz_wk"]=> string(1) "-" ["gysqjfz"]=> string(1) "-" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "-" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： NPT2010复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：-
外壳：-
描述： HEMT N-CH 48V 100W DC-2.2GHZ
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 403 ) LIMIT 1
晶体管类型：HEMT
频率(Hz)：0Hz ~ 2.2GHz
增益(dB)：15dB
测试电压(V)：48V
额定电流(A)：-
输出功率(W)：95W
额定电压(V)：48V
丝印：(请登录)
料号：1040403
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'NPT2010' ) LIMIT 1
array(68) { ["id"]=> string(3) "443" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF150.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF150.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF150.JPG" ["ljbh"]=> string(12) "1465-1152-ND" ["zzsbh"]=> string(6) "MRF150" ["zddgs"]=> string(1) "1" ["xysl"]=> string(1) "0" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(25) "FET RF 125V 150MHZ 211-11" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(14) "30MHz ~ 150MHz" ["zy"]=> string(10) "8dB ~ 17dB" ["dy_cs"]=> string(3) "50V" ["eddl"]=> string(3) "16A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(5) "250mA" ["gl_sc"]=> string(4) "150W" ["dy_ed"]=> string(4) "125V" ["fz_wk"]=> string(14) "211-11，2 型" ["gysqjfz"]=> string(14) "211-11，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF150复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：211-11，2 型
外壳：211-11，2 型
描述： FET RF 125V 150MHZ 211-11
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 443 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：30MHz ~ 150MHz
增益(dB)：8dB ~ 17dB
测试电压(V)：50V
额定电流(A)：16A
输出功率(W)：150W
额定电压(V)：125V
丝印：(请登录)
料号：1040443
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF150' ) LIMIT 1
array(68) { ["id"]=> string(3) "447" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF134.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF136.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF136.JPG" ["ljbh"]=> string(12) "1465-1145-ND" ["zzsbh"]=> string(6) "MRF134" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "60" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(24) "FET RF 65V 400MHZ 211-07" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(6) "400MHz" ["zy"]=> string(13) "10.6dB ~ 14dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(5) "900mA" ["zsxs"]=> string(3) "2dB" ["dl_cs"]=> string(4) "50mA" ["gl_sc"]=> string(2) "5W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(6) "211-07" ["gysqjfz"]=> string(14) "211-07，2 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF134复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：211-07，2 型
外壳：211-07
描述： FET RF 65V 400MHZ 211-07
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 447 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：400MHz
增益(dB)：10.6dB ~ 14dB
测试电压(V)：28V
额定电流(A)：900mA
输出功率(W)：5W
额定电压(V)：65V
丝印：(请登录)
料号：1040447
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF134' ) LIMIT 1
array(68) { ["id"]=> string(3) "448" ["pdf_add"]=> string(42) "http://cdn.macom.com/datasheets/MRF160.pdf" ["images_sw"]=> string(1) " " ["images_mk"]=> string(68) "//media.digikey.com/Photos/MACom%20Technology%20Solutions/MRF160.JPG" ["images"]=> string(86) "https://www.chenkeiot.com/Public/imagesmk/Photos/MACom_Technology_Solutions/MRF160.JPG" ["ljbh"]=> string(12) "1465-1159-ND" ["zzsbh"]=> string(6) "MRF160" ["zddgs"]=> string(1) "1" ["xysl"]=> string(2) "79" ["cfkc"]=> string(1) "0" ["dj"]=> string(8) "0.000000" ["gys_id"]=> string(1) " " ["num"]=> string(1) " " ["price_addtime"]=> string(1) "0" ["ms"]=> string(24) "FET RF 65V 500MHZ 249-06" ["xl"]=> string(1) "-" ["zzs"]=> string(18) "MACOM/镁可微波" ["zzs_new"]=> string(9) "未设定" ["zzs_old"]=> string(28) "M/A-Com Technology Solutions" ["lm"]=> string(6) "未设" ["tdxl"]=> string(9) "未设定" ["jtglx"]=> string(8) "N 通道" ["pl"]=> string(14) "30MHz ~ 500MHz" ["zy"]=> string(4) "18dB" ["dy_cs"]=> string(3) "28V" ["eddl"]=> string(2) "1A" ["zsxs"]=> string(1) "-" ["dl_cs"]=> string(4) "50mA" ["gl_sc"]=> string(2) "4W" ["dy_ed"]=> string(3) "65V" ["fz_wk"]=> string(6) "249-06" ["gysqjfz"]=> string(14) "249-06，3 型" ["gzwd"]=> string(1) "-" ["djs"]=> string(1) "-" ["tag"]=> string(1) " " ["bz"]=> string(0) "" ["spq"]=> string(1) "-" ["moq"]=> string(2) "10" ["is_rohs"]=> string(1) "1" ["gl_zz"]=> string(6) "贴片" ["gl_pin"]=> string(1) "4" ["gl_dm"]=> string(1) "-" ["gl_dmtp"]=> string(0) "" ["symbol"]=> string(0) "" ["gl_vdd"]=> string(1) "-" ["gl_gnd"]=> string(1) "-" ["gl_jz"]=> string(1) " " ["gl_bdm"]=> string(1) "4" ["gl_bdmsm"]=> string(0) "" ["gl_kbc"]=> string(1) "0" ["gl_dmgx"]=> string(1) "0" ["pcbfzk_id"]=> string(0) "" ["pcbfzk"]=> string(1) "-" ["ljzt"]=> string(6) "在售" ["jyid"]=> string(1) "-" ["cat_id"]=> string(3) "130" ["wl_num"]=> string(4) "1040" ["admin_id"]=> string(1) "0" ["mpn_bm"]=> string(23) "golon_jtg_fet_mosfet_sp" ["ch_bm"]=> string(17) "高频-FET,MOS管" ["lock_dm"]=> string(1) "1" ["is_use_cat_id"]=> string(1) "0" ["is_new_time"]=> string(1) "0" ["ms_c"]=> string(1) " " ["ytfw"]=> string(1) "-" ["hot_or_top"]=> string(1) "0" ["yqjtd_pintopin"]=> string(1) " " ["yqjtd_jianrong"]=> string(1) " " }
select a.wl_num,a.parent_id,GROUP_CONCAT(b.cat_name,' ',a.cat_name) as lb,a.action_name,a.rate,a.rate_hot,ROUND(sum(a.rate+a.rate_hot/100),4) as moq_rate from golon_ics_category a left join golon_ics_category b on a.parent_id=b.id where a.mpn_bm='golon_jtg_fet_mosfet_sp' array(1) { [0]=> array(7) { ["wl_num"]=> string(4) "1040" ["parent_id"]=> string(3) "121" ["lb"]=> string(28) "晶体管 高频-FET,MOS管" ["action_name"]=> string(4) "jtg9" ["rate"]=> string(5) "1.155" ["rate_hot"]=> string(2) "35" ["moq_rate"]=> string(6) "1.5050" } }
型号： MRF160复制
状态： 在售 修改
品牌： MACOM/镁可微波复制
封装：249-06，3 型
外壳：249-06
描述： FET RF 65V 500MHZ 249-06
SELECT * FROM `golon_jtg_fet_mosfet_sp` WHERE ( `id` = 448 ) LIMIT 1
晶体管类型：N 通道
频率(Hz)：30MHz ~ 500MHz
增益(dB)：18dB
测试电压(V)：28V
额定电流(A)：1A
输出功率(W)：4W
额定电压(V)：65V
丝印：(请登录)
料号：1040448
量大可议价
起订量:10 修改
包装量: 修改
个
咨询客服
SELECT count(a.gys_id) as c FROM golon_gys_file_new a LEFT JOIN golon_gys_brand b on a.gys_id=b.id WHERE ( a.zzsbh = 'MRF160' ) LIMIT 1

辰科物联

https://www.chenkeiot.com/

已成功加入购物车！
去购物车结算 继续采购
复制成功

业务介绍

芯片采购
芯片丝印
商品选型
芯片烧录
开发工具
Bom采购
SMT贴片

购物指南

注册登录
找回密码
购物流程
常见问题
支付方式
配送方式

联系我们

直线：0755-28435922
总部地址：广东省深圳市龙岗区坂田上雪村金鹏工业区新一栋5楼
联系我们
公司简介

关注我们

微信扫码
辰科物联介绍

粤公网安备 号

粤ICP备2023141824号-1

Copyright © 2002-2025 深圳市辰科物联有限公司 版权所有

销售在线 销售在线 工程师在线 工程师在线 电话咨询

销售在线

刘s:2355289363

手机: 15074164838

销售在线

陈s:2355289368

手机: 13510573285

工程师在线

吴工:2355289360

手机: 13824329149

工程师在线

陈工:2355289365

手机: 15818753382

电话咨询

0755-28435922
